ULTEM 9085 – High Performance FDM 3D Printing Material
ULTEM 9085 is the ultimate 3D Printing material.
- High temperature resistance
- Flame retardant
- Smoke resistant
- Non-toxic
- High-strength
- High-performance
| Mechanical Properties1 | Test Method | English | Metric |
| Tensile Strength (Type 1, 0.125”, 0.2”/min) | ASTM D638 | 10,400 psi | 71.6 MPa |
| Tensile Modulus (Type 1, 0.125”, 0.2”/min) | ASTM D638 | 322 kpsi | 2,200 MPa |
| Tensile Elongation (Type 1, 0.125”, 0.2”/min) | ASTM D638 | 6% | 6% |
| Flexural Strength (Method 1, 0.05”/min) | ASTM D790 | 16,700 psi | 115.1 MPa |
| Flexural Modulus (Method 1, 0.05”/min) | ASTM D790 | 362.6 kpsi | 2,500 MPa |
| IZOD Impact, notched (Method A, 23°C) | ASTM D256 | 2.0 ft-lb f/in | 106 J/m |
| IZOD Impact, un-notched (Method A, 23°C) | ASTM D256 | 11.5 ft-lb f/in | 613.8 J/m |
| Compression Strength | ASTM D695 | 15.2 ksi | 104 MPa |
| Compression Modulus | ASTM D732 | 280 ksi | 1930 MPa |
| Shear Strength (0.25” thick coupon) | ASTM D732 | 8.3 ksi | 57 MPa |
| Thermal Properties2 | Test Method | English | Metric |
| Heat Deflection (HDT) @ 66 psi, 0.125” unannealed | ————— | ————— | ————— |
| Heat Deflection (HDT) @ 264 psi, 0.125” unannealed | ASTM D648 | 307 °F | 153°C |
| Glass Transition Temperature (Tg) | DSC (SSYS) | 367°F | 186°C |
| Coefficient of Thermal Expansion | ASTM E228 | 3.67e-05 in/(in·F°) | 65.27 ?m/(m·C°) |
| Melt Point | ————— | Not Applicable3 | Not Applicable3 |
| Electrical Properties4 | Test Method | Value Range |
| Volume Resistivity | ASTM D257 | 1.0 x 10e14 – 6.0 x 10e13 ohms |
| Dielectric Constant | ASTM D150-98 | 3.2 – 3.0 |
| Dissipation Factor | ASTM D150-98 | .0027 – .0026 |
| Dielectric Strength | ASTM D149-09, Method A | 290 – 110 V/mil |
| Other2 | Test Method | Value |
| Specific Gravity | ASTM D792 | 1.34 |
| Rockwell Hardness | ASTM D785 | — |
| Flame Classification | UL94 | V-0 |
| Oxygen Index | ASTM D2863 | 0.49 |
| Vertical Burn | FAR 25.853 (Test a (60s), passes at) | 2 seconds |
| FAA Flammability | FAR 25.853 (Method A/B) | < 5 |
| OSU Total Heat Release (5 min test) | FAR 25.853 | 36 kW/m2 |
| OSU Total Heat Release (2 min test) | FAR 25.853 | 16 kW min/m2 |
| UL File Number | ————— | E345258 |
| Outgassing | ||
| Total Mass Loss (TML) | ASTM E595 | 0.41% (1.00% maximum) |
| Collected Volatile Condensable Material (CVCM) | ASTM E595 | -0.1% (0.10% maximum) |
| Water Vapor Recovered (WVR) | ASTM E595 | -0.37% (report) |
| Fungus Resistance (Method 508.6) | MIL-STD-810G | Passed |
| Burn Testing | ||
| Vertical Burn (60 sec) | FAR 25.853 | Passed (0.040” – 0.250” thick) |
| Heat Release 65/65 | FAR 25.853 | Passed (<40HR Peak, 0.060” thick) |
| NBS Smoke Density (flaming) | ASTM F814/E662 | Passed |
| NBS Smoke Density (non-flaming) | ASTM F814/E662 | Passed |
1Build orientation is on side long edge.
2Literature value unless otherwise noted.
3Due to amorphous nature, material does not display a melting point.
4All Electrical Property values were generated from the average of test plaques built with default part density (solid). Test plaques were 4.0 x 4.0 x 0.1 inches (102 x 102 x 2.5 mm) and were built both in the flat and vertical orientation. The range of values is mostly the result of the difference in properties of test plaques built in the flat vs. vertical orientation.
50.013 inch (0.300 mm) layer thickness not available for Fortus 400mc
Common Applications of ULTEM 9085

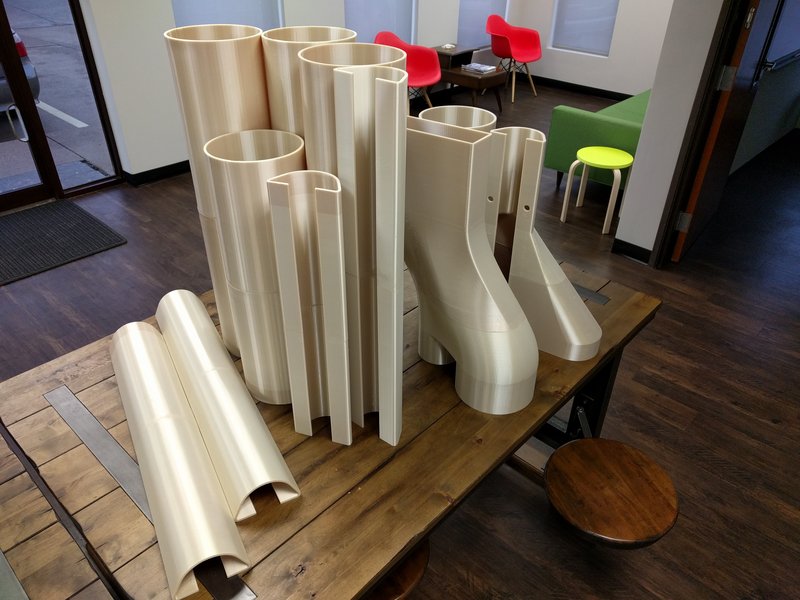

- Aerospace Ducting & Brackets
- Fixtures & Jigs
- Automotive & Transportation Components
- Medical components & tools
Certifications:
- ULTEM Flammability, Smoke and Toxicity (FST)
FAA, JAR, FAR and Airbus certifications
(7mb test report download pack)
