PartSnap takes advantage of several different 3D printing processes

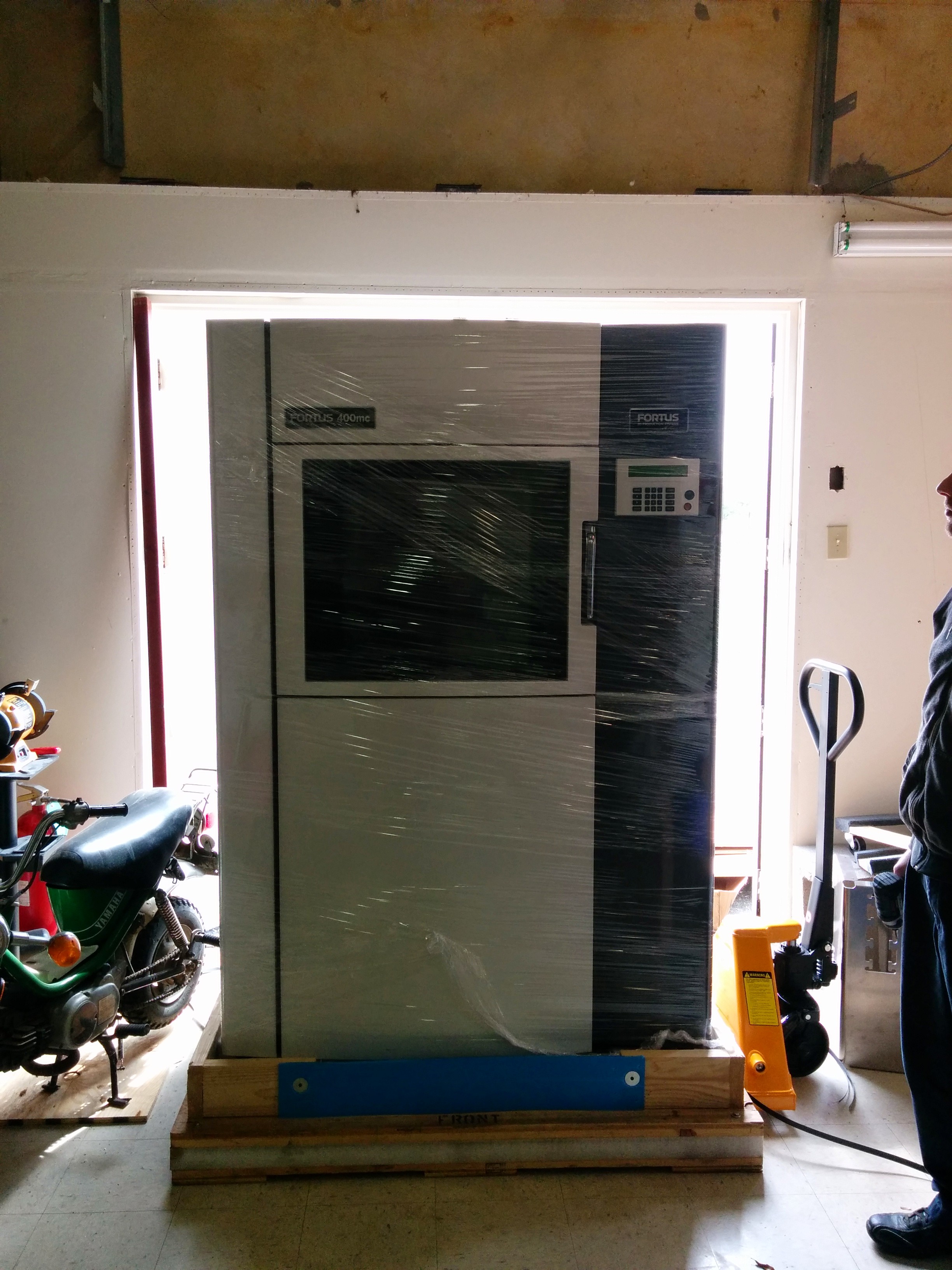

Professional-grade Stratasys FDM process is best suited for:Stratasys Fortus 400mc FDM 3D Printer

  • high-performance end-use parts
  • manufacturing fixtures
  • Digital Direct Manufacturing (DDM)
  • real thermoplastics like ABS, PC-ISO and ULTEM
  • thick-walled or bulky designs
  • color prototypes
Below are some more details on our FDM 3D printing process:
  • maximum build envelope (bounding box) of the printer is: 16″ x 14″ x 16″ (406mm x 356mm x 406mm)
  • features on printed parts should be at least  0.045 inch in size (walls, ribs, bosses, holes, etc)
  • material specifications of ABS, PC-ISO and ULTEM
  • watch the video on how our Stratasys Dimension FDM 3D Printer works

Click to see our our PolyJet 3D Printing System Works

Professional-grade Stratasys PolyJet process is best suited for:

  • form, fit and function testing
  • validating conceptual designs prior to injection molding
  • creating detailed prototypes and models

Below are some more details on our PolyJet 3D printing process:




Makergear M2 FFF 3D PrinterConsumer-grade Fused Filament Fabrication (FFF), an open-source variation of FDM, is best suited for:

  • low-cost early-stage prototyping
  • vibrant color prototyping
  • visual models and marketing sampples
Below are some more details on our FFF 3D printing process:
  • build envelope (bounding box) of the printers are: 8” x 10” x 8” (200mm x 250mm x 200mm)
  • features on printed parts should be at least 0.040 inch in size (walls, ribs, bosses, holes, etc)
  • the FFF process is not considered a professional-grade process, so no tolerances are quoted or guaranteed

3D Printing Process Details

FDM PolyJet FFF



Material Specifications

FDM Materials PolyJet Materials FFF Materials
